Categoría: VISUAL STUDIO 2022

Como guardar archivos generados en texto en archivo

Ya vimos como generar el texto del modelo, vista y controlador tomando en base solo una tabla de MariaDB/MySQL tomando las columnas y campos con llave primaria, ahora lo que nos falta por hacer es guardar esa información en archivos .PHP en el proyecto para ello simplemente hacemos lo siguiente.

Primero guardamos en registro de windows la ruta para que se valla quedando guardando como default, esto lo hacemos al darle click al botón aceptar.

Lo hacemos con el siguiente código

   'Guardamos en el registro de windows la variable de txtTabla
       My.Computer.Registry.SetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "txtRuta", Me.txtRuta.Text)

Luego en el evento load de la ventana creador de cátalogo agregamos para leer la variable donde guardamos la ruta del registro de windows

  'Leemos la variable por default de la ruta desde el registro de windows
        If Not My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "txtRuta", Nothing) Is Nothing Then

            Me.txtRuta.Text = My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "txtRuta", Nothing).ToString()

        End If

Ya por ultimo grabamos los textos en los archivos correspondientes, es importante usar la codificación ASCII para evitar errores en el ajax

        'GUARDAMOS LOS ARCHIVOS

        'GUARDAMOS MODELO EN EL ARCHIVO
        My.Computer.FileSystem.WriteAllText(Me.txtRuta.Text & "/modelos/" & txtTabla.Text & ".modelo.php", strModelo, False, System.Text.Encoding.ASCII)

        'GUARDAMOS CONTROLADOR EN EL ARCHIVO
        My.Computer.FileSystem.WriteAllText(Me.txtRuta.Text & "/controladores/" & txtTabla.Text & ".controlador.php", strControlador, False, System.Text.Encoding.ASCII)

        'GUARDAMOS VISTA EN EL ARCHIVO
        My.Computer.FileSystem.WriteAllText(Me.txtRuta.Text & "/vistas/modulos/" & txtTabla.Text & ".php", strVista, False, System.Text.Encoding.ASCII)

Y listo ya con esto nos debe crear los archivos

Solo tendremos que crear manualmente el menú y agregar en plantilla.php para que corra la visa

Saludos en el próximo video veremos como subir el proyecto para que lo puedan descargar

Creando texto para vista PHP8 en base a la tabla usando Visual Basic 2022

Ahora solo queda hacer la función para generar automáticamente el código HTML/PHP para la vista del catalogo en base a la nueva tabla.

La lógica es igual solo que es otro texto

Insertamos el siguiente código

'IMPORTAMOS LAS LIBRERIAS NECESARIAS PARA LA CONEXIÓN A MYSQL/MARIADB

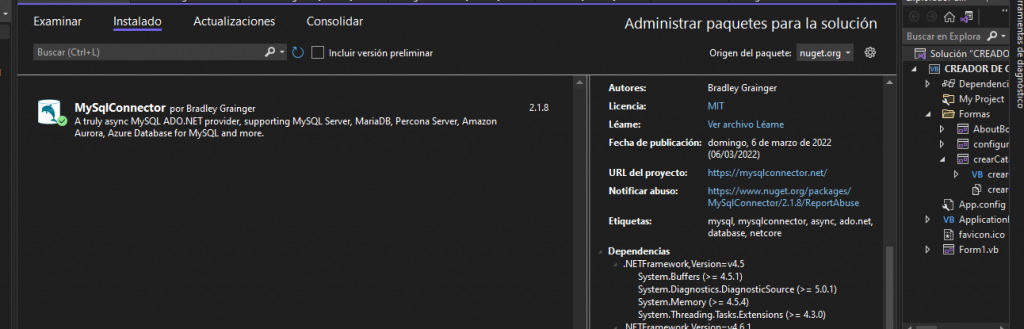

Imports MySqlConnector.MySqlConnection

'EMPIEZA EL MODULO
Module crearVista

    ' CON PUBLIC SUB CREAMOS PROCEDIMIENTOS
    Public Function generarVista() As String

        ' VARIABLES PARA LA CONEXIÓN
        Dim strServidor As String
        Dim strBaseDeDatos As String
        Dim strUsuario As String
        Dim strContra As String

        'Variables de uso
        Dim contador As Integer
        Dim strEncabezadosTabla As String
        Dim strCampos As String
        Dim strControlesNuevos As String
        Dim strControlesEditar As String
        Dim strEditarJS As String
        Dim strBloquear As String
        Dim strEditarTraeDatos As String
        Dim strDatos As String
        Dim strLLavePrimaria As String
        Dim strVista As String
        Dim strSegundoCampo As String

        contador = 0
        strEncabezadosTabla = ""
        strCampos = ""
        strControlesNuevos = ""
        strEditarJS = ""
        strDatos = ""

        'OBTENEMOS LOS DATOS DE CONFIGURACIÖN DEL REGISTRO DE WINDOWS PREVIAMENTE GUARDADAS
        If Not My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "servidor", Nothing) Is Nothing Then
            strServidor = My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "servidor", Nothing).ToString()
            strBaseDeDatos = My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "baseDeDatos", Nothing).ToString()
            strUsuario = My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "usuario", Nothing).ToString()
            strContra = My.Computer.Registry.GetValue("HKEY_CURRENT_USER\CREADORMVCPHP", "contra", Nothing).ToString()
        Else

            MsgBox("No se han capturado la conexión a la base de datos")
            Exit Function


        End If


        ' METEMOS LA CADENA DE CONEXIÓN EN UNA VARIABLE
        Dim cadenaConexion = "Server=" & strServidor & ";User ID=" & strUsuario & ";Password=" & strContra & ";Database=" & strBaseDeDatos

        ' CREAMOS LA CONEXIÓN CON LA CADENA DE CONEXIÓN
        Dim connection = New MySqlConnector.MySqlConnection(cadenaConexion)

        Try


            connection.Open()
            Dim comando = New MySqlConnector.MySqlCommand("delete from clases where clase= 'controladores/" & frmCreaCatalogo.txtTabla.Text & ".controlador.php'", connection)
            Dim resultado = comando.ExecuteReader()
            comando = Nothing
            resultado = Nothing
            connection.Close()



            connection.Open()
            comando = New MySqlConnector.MySqlCommand("delete from clases where clase= 'modelos/" & frmCreaCatalogo.txtTabla.Text & ".modelo.php'", connection)
            resultado = comando.ExecuteReader()
            comando = Nothing
            resultado = Nothing
            connection.Close()

            connection.Open()
            comando = New MySqlConnector.MySqlCommand("insert into clases(clase) values('controladores/" & frmCreaCatalogo.txtTabla.Text & ".controlador.php')", connection)
            resultado = comando.ExecuteReader()
            comando = Nothing
            resultado = Nothing
            connection.Close()

            connection.Open()
            comando = New MySqlConnector.MySqlCommand("insert into clases(clase) values( 'modelos/" & frmCreaCatalogo.txtTabla.Text & ".modelo.php')", connection)
            resultado = comando.ExecuteReader()
            comando = Nothing
            resultado = Nothing
            connection.Close()

            ' SI SE ABRE LA CONEXIÓN MANDAMOS MENSAJE
            connection.Open()




            comando = New MySqlConnector.MySqlCommand("SHOW KEYS FROM  " & frmCreaCatalogo.txtTabla.Text & " WHERE Key_name = 'PRIMARY'", connection)

            resultado = comando.ExecuteReader

            resultado.Read()


            'ASIGNAMOS EL CAMPO LLAVE

            strLLavePrimaria = resultado.GetString("Column_name")


            'OBTENEMOS LOS CAMPOS DE LA TABLA
            connection.Close()
            connection.Open()
            comando = Nothing
            comando = New MySqlConnector.MySqlCommand("describe  " & frmCreaCatalogo.txtTabla.Text & "", connection)
            resultado = Nothing
            resultado = comando.ExecuteReader



            contador = 0


            While (resultado.Read)
                strEncabezadosTabla &= "<th>" & utilerias.strPrimeraMayuscula(resultado("Field")) & "</th>" & vbCrLf

                strCampos &= "<td>'.$value[""" & resultado("Field") & """].'</td>" & vbCrLf

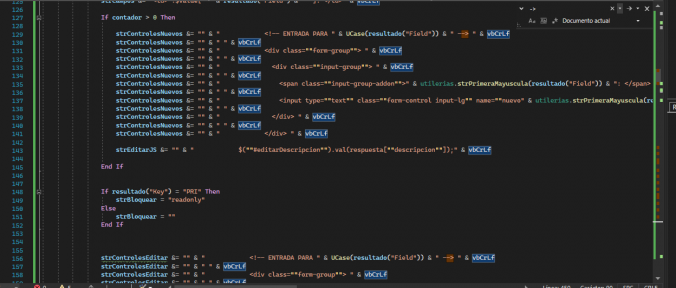

                If contador > 0 Then

                    strControlesNuevos &= "" & "            <!-- ENTRADA PARA " & UCase(resultado("Field")) & " --> " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "            <div class=""form-group""> " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "              <div class=""input-group""> " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "                <span class=""input-group-addon"">" & utilerias.strPrimeraMayuscula(resultado("Field")) & ": </span>  " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "                <input type=""text"" class=""form-control input-lg"" name=""nuevo" & utilerias.strPrimeraMayuscula(resultado("Field")) & """ placeholder=""Ingresar " & utilerias.strPrimeraMayuscula(resultado("Field")) & """ required> " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "              </div> " & vbCrLf
                    strControlesNuevos &= "" & " " & vbCrLf
                    strControlesNuevos &= "" & "            </div> " & vbCrLf

                    strEditarJS &= "" & "            $(""#editarDescripcion"").val(respuesta[""descripcion""]);" & vbCrLf

                End If


                If resultado("Key") = "PRI" Then
                    strBloquear = "readonly"
                Else
                    strBloquear = ""
                End If



                strControlesEditar &= "" & "            <!-- ENTRADA PARA " & UCase(resultado("Field")) & " --> " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "            <div class=""form-group""> " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "              <div class=""input-group""> " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "                <span class=""input-group-addon"">" & utilerias.strPrimeraMayuscula(resultado("Field")) & ": </span>  " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "                <input " & strBloquear & "  type=""text"" class=""form-control input-lg"" id=""editar" & utilerias.strPrimeraMayuscula(resultado("Field")) & """ name=""editar" & utilerias.strPrimeraMayuscula(resultado("Field")) & """ placeholder=""Ingresar " & utilerias.strPrimeraMayuscula(resultado("Field")) & """ required> " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "              </div> " & vbCrLf
                strControlesEditar &= "" & " " & vbCrLf
                strControlesEditar &= "" & "            </div> " & vbCrLf

                strEditarTraeDatos &= "" & "            $(""#editar" & utilerias.strPrimeraMayuscula(resultado("Field")) & """).val(respuesta[""" & resultado("Field") & """]); " & vbCrLf

                contador = contador + 1

            End While


            strControlesEditar &= "" & " <input type=""hidden"" id=""editar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """  name = ""editar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """ > " & vbCrLf
            strEncabezadosTabla &= "<th>Acciones</th>"
            strCampos &= "<td> " & vbCrLf
            strCampos &= "<div class = ""btn-group""> " & vbCrLf



            strCampos &= "                    <button class= ""btn btn-warning btnEditar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """ id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " = ""'.$value[""id""].'"" data-toggle = ""modal"" data-target = ""#modalEditar" & Trim(utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text)) & """> <i class = ""fa fa-pencil""> </i> </button> " & vbCrLf

            strCampos &= "<button class = ""btn btn-danger btnEliminar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """ id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "= ""'.$value[""id""].'""><i class= ""fa fa-times""></i></button>" & vbCrLf

            strCampos &= "</div>" & vbCrLf

            strCampos &= "</td> " & vbCrLf

            strVista &= "" & "<?php" & vbCrLf
            strVista &= "" & vbCrLf
            strVista &= "" & "if(""off"" == ""offf""){" & vbCrLf
            strVista &= "" & vbCrLf
            strVista &= "" & "  echo '<script>" & vbCrLf
            strVista &= "" & vbCrLf
            strVista &= "" & "    window.location = ""inicio""; " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  </script>'; " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  return; " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "} " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "?> " & vbCrLf
            strVista &= "" & "<div class=""content-wrapper"">" & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  <section class=""content-header"">" & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    <h1> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      Administrar <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', ' " & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " ')); ?> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    </h1> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    <ol class=""breadcrumb""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <li><a href=""inicio""><i class=""fa fa-dashboard""></i> Inicio</a></li> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <li class=""active"">Administrar <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', '" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " ')); ?></li> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    </ol> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  </section> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  <section class=""content""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    <div class=""box""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <div class=""box-header With-border""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <button class=""btn btn-primary"" data-toggle=""modal"" data-target=""#modalAgregar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          Agregar <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', '" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " ')); ?> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <div class=""box-body""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "       <table class=""table table-bordered table-striped dt-responsive tablas"" width=""100%""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <thead> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "         <tr> " & vbCrLf
            strVista &= "" & " " & strEncabezadosTabla
            strVista &= "" & "         </tr>  " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </thead> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <tbody> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <?php " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        $item = null; " & vbCrLf
            strVista &= "" & "        $valor = null; " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        $" & frmCreaCatalogo.txtTabla.Text & "= Controlador" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "::ctrMostrar($item, $valor); " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "       foreach ($" & frmCreaCatalogo.txtTabla.Text & " as $key => $value){ " & vbCrLf
            strVista &= "" & " " & vbCrLf



            strVista &= "" & "          echo ' <tr> " & vbCrLf

            strVista &= "" & strCampos & vbCrLf

            strVista &= "" & " " & vbCrLf
            strVista &= "" & "                </tr>'; " & vbCrLf
            strVista &= "" & "        } " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        ?>  " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </tbody> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "       </table> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  </section> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "</div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "<!--===================================== " & vbCrLf
            strVista &= "" & "MODAL <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', ' " & (frmCreaCatalogo.txtTabla.Text) & " ')); ?> " & vbCrLf
            strVista &= "" & " ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "<div id=""modalAgregar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """ class=""modal fade"" role=""dialog""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  <div class=""modal-dialog""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    <div class=""modal-content""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <form role=""form"" method=""post"" enctype=""multipart/form-data""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        CABEZA DEL MODAL " & vbCrLf
            strVista &= "" & "        ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-header"" style=""background:#3c8dbc; color:white"" > " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""button"" class=""close"" data-dismiss=""modal"">&times;</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <h4 class=""modal-title"">Agregar <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', ' " & (frmCreaCatalogo.txtTabla.Text) & " ')); ?> </h4> " & vbCrLf
            strVista &= "" & " " & vbCrLf

            strVista &= "" & "        </div> " & vbCrLf

            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        CUERPO DEL MODAL " & vbCrLf
            strVista &= "" & "        ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-body""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <div class=""box-body""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "            <!-- ENTRADA PARA DESCRIPCION --> " & vbCrLf

            strVista &= "" & " " & strControlesNuevos & vbCrLf


            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        PIE DEL MODAL " & vbCrLf
            strVista &= "" & "        ====================================== --> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-footer""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""button"" class=""btn btn-Default pull-left"" data-dismiss=""modal"">Salir</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""submit"" class=""btn btn-primary"">Guardar</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <?php " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "           $crear = new Controlador" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "(); " & vbCrLf
            strVista &= "" & "           $crear ->ctrIngresar(); " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        ?> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      </form> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "</div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "<!--===================================== " & vbCrLf
            strVista &= "" & "MODAL EDITAR USUARIO " & vbCrLf
            strVista &= "" & " ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "<div id=""modalEditar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """ class=""modal fade"" role=""dialog"">" & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  <div class=""modal-dialog""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    <div class=""modal-content""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      <form role=""form"" method=""post"" enctype=""multipart/form-data""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        CABEZA DEL MODAL " & vbCrLf
            strVista &= "" & "        ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-header"" style=""background:#3c8dbc; color:white"" > " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""button"" class=""close"" data-dismiss=""modal"">&times;</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <h4 class=""modal-title"">Agregar <?php echo  mb_strtolower(preg_replace('/(?<=\\w)(\\p{Lu})/u', ' $1', ' " & (frmCreaCatalogo.txtTabla.Text) & " ')); ?> </h4> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        CUERPO DEL MODAL " & vbCrLf
            strVista &= "" & "        ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-body""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <div class=""box-body""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "            <!-- ENTRADA PARA DESCRIPCION --> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & strControlesEditar
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <!--===================================== " & vbCrLf
            strVista &= "" & "        PIE DEL MODAL " & vbCrLf
            strVista &= "" & "        ======================================--> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        <div class=""modal-footer""> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""button"" class=""btn btn-Default pull-left"" data-dismiss=""modal"">Salir</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "          <button type=""submit"" class=""btn btn-primary"">Modificar</button> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "     <?php " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "           $editar = new Controlador" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "(); " & vbCrLf
            strVista &= "" & "           $editar ->ctrEditar(); " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "        ?>  " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "      </form> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "    </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "  </div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "</div> " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "<?php " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "   $borrar = new Controlador" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "(); " & vbCrLf
            strVista &= "" & "   $borrar ->ctrBorrar(); " & vbCrLf
            strVista &= "" & " " & vbCrLf
            strVista &= "" & "?>  " & vbCrLf

            'JAVASCRIPT FUNCIONES
            strVista &= "" & "<script type=""text/javascript"">" & vbCrLf

            'ELIMINAR


            strVista &= "" & "/*= == == == == == == == == == == == == == == == == == == == == == ==" & vbCrLf
            strVista &= "" & " ELIMINAR " & UCase(frmCreaCatalogo.txtTabla.Text) & vbCrLf
            strVista &= "" & " == == == == == == == == == == == == == == == == == == == == == == = */" & vbCrLf
            strVista &= "" & "$("".tablas "").on(""click"", "".btnEliminar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """, function() {" & vbCrLf

            strVista &= "" & "    var id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " = $(this).attr(""id" & frmCreaCatalogo.txtTabla.Text & """);" & vbCrLf

            strVista &= "" & "    swal( {" & vbCrLf
            strVista &= "" & "        title: '¿Está seguro de borrar?'," & vbCrLf
            strVista &= "" & "        text: ""¡Si no lo está puede cancelar la accíón!""," & vbCrLf
            strVista &= "" & "        type: 'warning'," & vbCrLf
            strVista &= "" & "        showCancelButton: true," & vbCrLf
            strVista &= "" & "        confirmButtonColor: '#3085d6'," & vbCrLf
            strVista &= "" & "        cancelButtonColor: '#d33'," & vbCrLf
            strVista &= "" & "        cancelButtonText: 'Cancelar'," & vbCrLf
            strVista &= "" & "       confirmButtonText: 'Si, borrar!'" & vbCrLf
            strVista &= "" & "    }).then(function(result) {" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "        if (result.value) {" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "            window.location = ""index.php?ruta=" & (frmCreaCatalogo.txtTabla.Text) & "&id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "=""+id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "+""&borrar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "=borrar"";" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "        }" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "    })" & vbCrLf

            strVista &= "" & "})" & vbCrLf


            'editar

            strVista &= "" & "/* = == == == == == == == == == == == == == == == == == == == == == ==" & vbCrLf
            strVista &= "" & " EDITAR " & vbCrLf
            strVista &= "" & " == == == == == == == == == == == == == == == == == == == == == == = */" & vbCrLf
            strVista &= "" & "$("".tablas "").on(""click"", "".btnEditar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """, function() {" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "    var id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & " = $(this).attr(""id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """);" & vbCrLf
            strVista &= "" & "  console.log(id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & ");"
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "    var datos = new FormData();" & vbCrLf
            strVista &= "" & "    datos.append(""id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """, id" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & "); " & vbCrLf
            strVista &= "" & "    datos.append(""buscar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """, ""buscar" & utilerias.strPrimeraMayuscula(frmCreaCatalogo.txtTabla.Text) & """);" & vbCrLf
            strVista &= "" & "   " & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "    $.ajax( {" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "        url:""controladores/" & frmCreaCatalogo.txtTabla.Text & ".controlador.php""," & vbCrLf
            strVista &= "" & "        method:""POST""," & vbCrLf
            strVista &= "" & "        data: datos," & vbCrLf
            strVista &= "" & "        cache: false," & vbCrLf
            strVista &= "" & "        contentType: false," & vbCrLf
            strVista &= "" & "        processData: false," & vbCrLf
            strVista &= "" & "       dataType:""json""," & vbCrLf
            strVista &= "" & "       success: function(respuesta) {" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & strEditarTraeDatos & vbCrLf
            strVista &= "" & "            " & vbCrLf
            strVista &= "" & "        }" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "    });" & vbCrLf
            strVista &= "" & "" & vbCrLf
            strVista &= "" & "})" & vbCrLf


            strVista &= "" & "</script>" & vbCrLf
            Return strVista
        Catch ex As Exception
            ' SI NO SE ABRE LA CONEXIÓN MANDAMOS MENSAJE DE ERROR
            MsgBox("ERROR " & ex.Message)

            Exit Function
        End Try

    End Function

End Module

CONEXIÓN VISUAL BASIC 2022 CON MYSQL

En la publicación anterior vimos como hacer el diseño de la ventana para generar el catalogo ahora nos toca leer la tabla para ver que campos contiene y así crear todos los archivos necesarios para crear el catalogo. Antes de leer los datos es necesario conectarnos a la base de datos de MySQL o MariaDB, así que en esta publicación veremos como conectarnos a a MySQL con Visual Basic 2022

Primero nos vamos a administrar paquetes Nutgets para solución e instalamos MySQLConector por Bradley Grainger

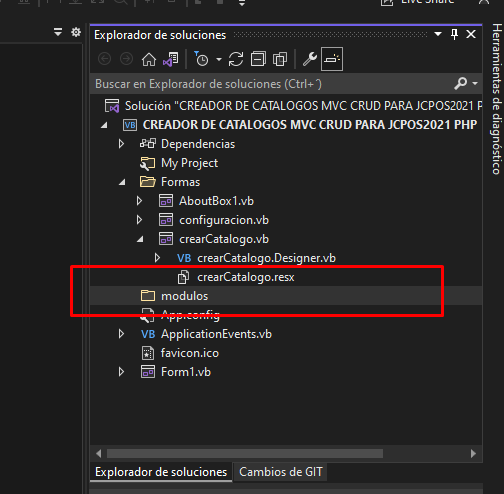

Creamos la carpeta módulos que nos servirá para guardar funciones y procedimientos necesarios para el proyecto que en nuestro caso será las conexiones

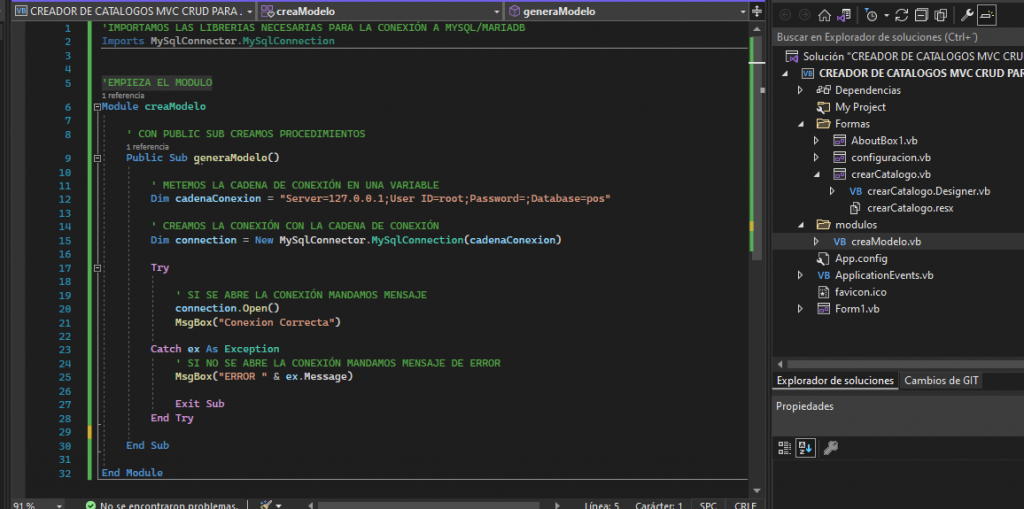

Creamos un modulo con nombre creaModelo

'IMPORTAMOS LAS LIBRERIAS NECESARIAS PARA LA CONEXIÓN A MYSQL/MARIADB
Imports MySqlConnector.MySqlConnection

'EMPIEZA EL MODULO
Module creaModelo
' CON PUBLIC SUB CREAMOS PROCEDIMIENTOS
Public Sub generaModelo()

    ' METEMOS LA CADENA DE CONEXIÓN EN UNA VARIABLE
    Dim cadenaConexion = "Server=127.0.0.1;User ID=root;Password=;Database=pos"

    ' CREAMOS LA CONEXIÓN CON LA CADENA DE CONEXIÓN
    Dim connection = New MySqlConnector.MySqlConnection(cadenaConexion)

    Try

        ' SI SE ABRE LA CONEXIÓN MANDAMOS MENSAJE
        connection.Open()
        MsgBox("Conexion Correcta")

    Catch ex As Exception
        ' SI NO SE ABRE LA CONEXIÓN MANDAMOS MENSAJE DE ERROR
        MsgBox("ERROR " & ex.Message)

        Exit Sub
    End Try

End Sub
End Module

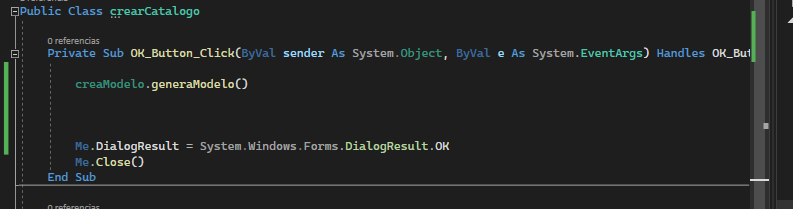

Quedaría de esta forma
    Private Sub OK_Button_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles OK_Button.Click

        creaModelo.generaModelo()

        Me.DialogResult = System.Windows.Forms.DialogResult.OK
        Me.Close()
    End Sub

Así quedaría el evento Click

El evento CLICK lo dejamos de esta manera y hacemos la prueba
A la hora de hacer la prueba nos debe arrojar el siguiente mensaje

Y bien en la próxima publicación veremos como usar la variables que guardamos en el registro de Windows para integrarla en la cadena de conexión

Preparando ventana principal y metiendo menú

Primero antes de poner el menú necesitamos preparar la ventana principal, ajustar los detalles como el icono, titulo, si es contenedor etc.

Al iniciar el proyecto tenemos esta venta básica, vemos que en el titulo dice Form1 y el icono es un icono genérico
Para cambiar el titulo damos click en la ventana y modificamos la propiedad Text
Para cambiar el icono de la aplicación nos vamos a la la propiedad Icon y seleccionamos el archivo de icono
Para agregar el menu nos vamos al cuadro de herramientas y en la categoría Menus & Toolbars y arrastramos el control MenuStrip
Aquí vemos como agregamos los menús Archivo, Procesos y ayuda, dentro de Archivo meteremos los sub menús Configuración y salir, dentro de Procesos metimos el sub menú crear catalogo y en el menú Ayuda metimos el sub menú de manual y acerca de
Agregamos también el menú con botones, en este caso solo dejamos el nuevo y el acerca de, para ello le damos click en el triangulo de la esquina superior derecha y le damos agregar elementos estándar, eliminamos los botones que no se necesitaran y queda de esta forma
Seleccionamos la ventana en general y en la propiedad isMDIContainer la dejamos como true “Verdadero” y entonces ya vamos a poder agregar ventanas internas dentro del programa

En la próxima publicación veremos como agregar una ventana nueva y mostrarla como interna

Creando proyecto WINFORMS en Visual Basic 2022

Ya tenemos todo instalado, ahora necesitamos hacer el proyecto de ventanas simples

Para crear el proyecto abrimos Visual Studio 2022

Empezamos dando click en Crear un proyecto
Elegimos la plantilla Visual Basic – Windows y Aplicación de Windows Forms y le damos click al boton siguiente
En el nombre del proyecto le ponemos CREADOR DE CATALOGOS MVC CRUD PARA JCPOS2021 PHP
Elegimos el Framework .NET 6.0
Y listo ya tenemos nuestra proyecto listo en blanco para poder pincelar nuestra grandiosa aplicación

En la siguiente publicación veremos como prepara la ventana principal con los menus, modificar algunos atributos como titulo icono ETC

INTRODUCCIÓN – INSTALACIÓN – TUTORIAL VISUAL BASIC 2022

Anteriormente hemos visto como hacer fácil aplicaciones básicas y sencillas en cualquier distribución de GNU/Linux usando Gambas 3.

Ahora haremos la aplicación usando la ultima versión de Visual Basic que esta dentro de la versión community 2022

Como introducción ya deben saber que a estas alturas Gambas3 y Visual Basic Entran a la categoria de entornos RAD (Rapid application development) o en español (desarrollo rapido de aplicacion)

Ventajas de la versión 2022 sobre las anteriores

Creado con WordPress & Tema de Anders Norén
